Monopole Reinforcement

CommStructures has been manufacturing monopoles and towers since 1996. This experience gives us a unique perspective for designing, fabricating and installing reinforcements. Let us share with you our accumulated knowledge and provide you with all of your reinforcement requirements.

• Monopole Extensions

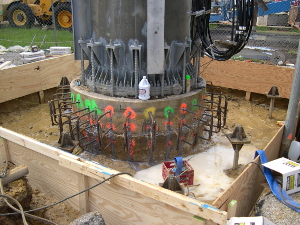

• Foundation Modifications
• Structural Components

Whether you choose from our PoleSaver™ turnkey solution or your needs are for individual design-only, fabrication or installation services; we are commited to providing the rapid turn around and high quality that the industry demands.

Fabrication

• Custom steel products
• Monopole extensions
• Base gusset plates
• Custom steel platforms
• High strength solid rods
• Hand holes/cable entry ports
• Flat plate 50-105KSI

Pole Saver

The complete Turnkey Solution

Design, manufacture, galvanize and install within
45 days!

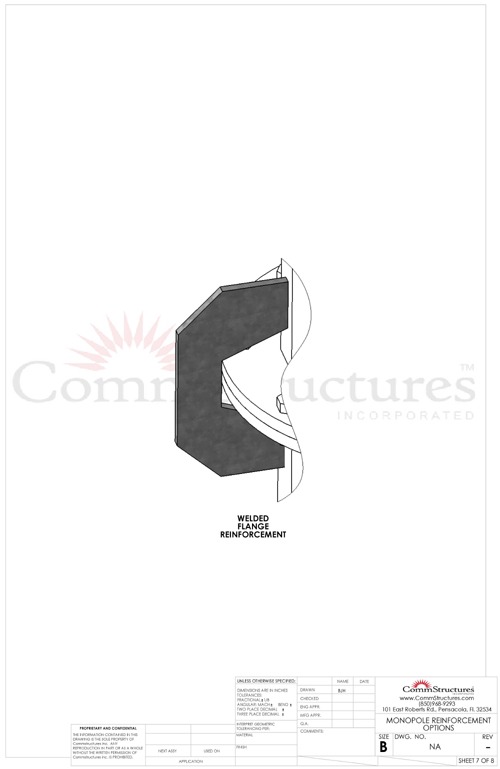

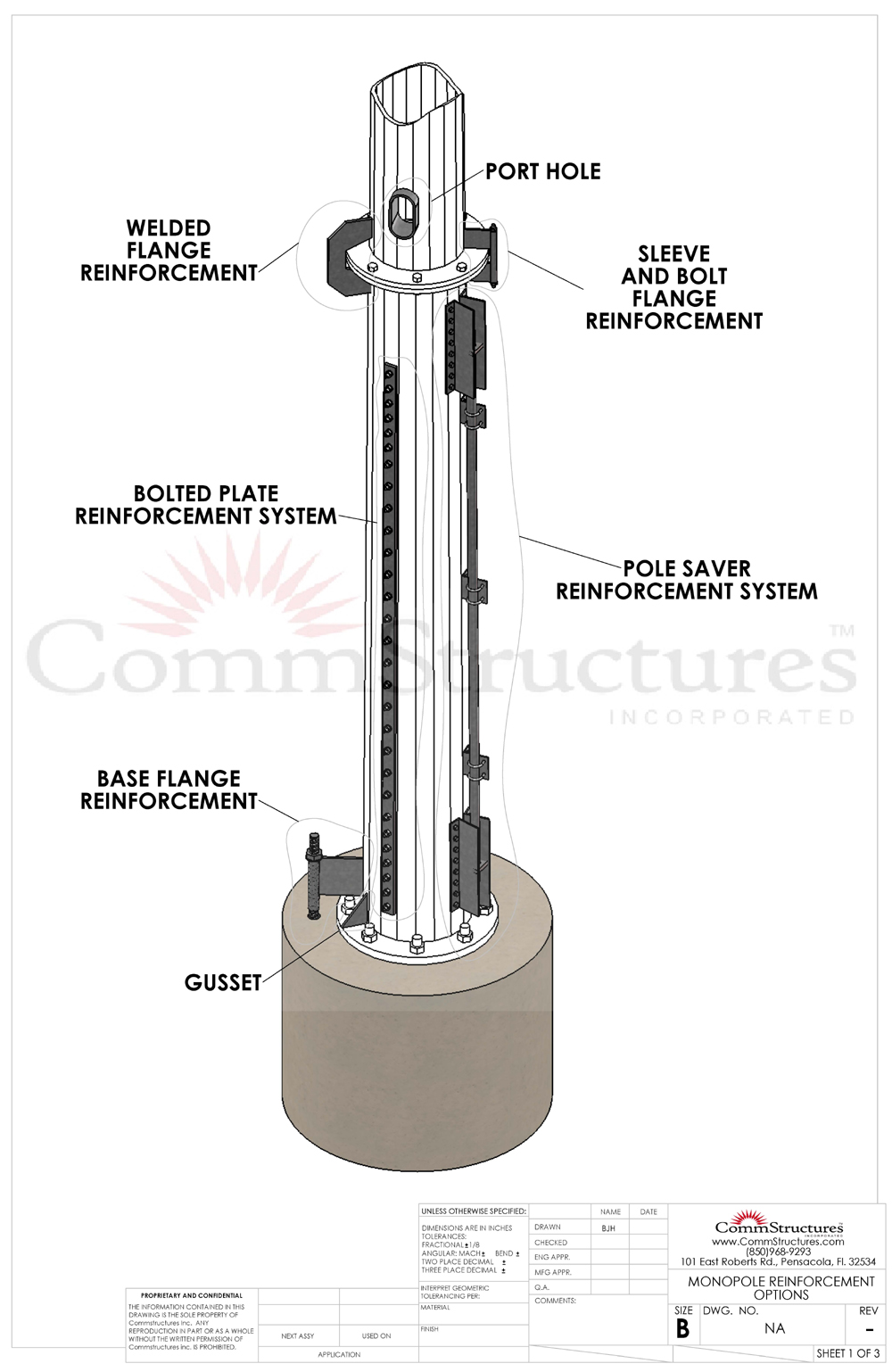

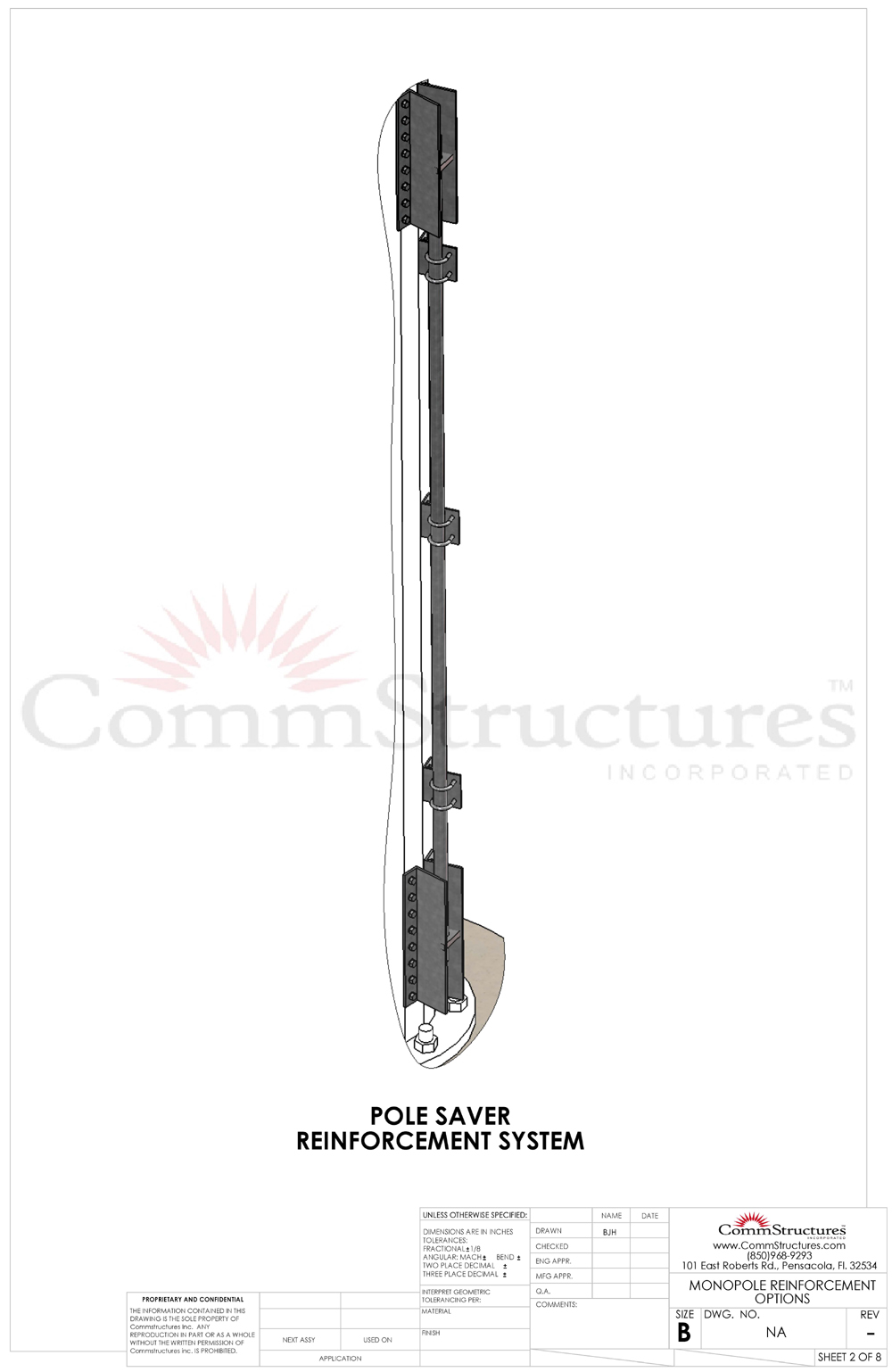

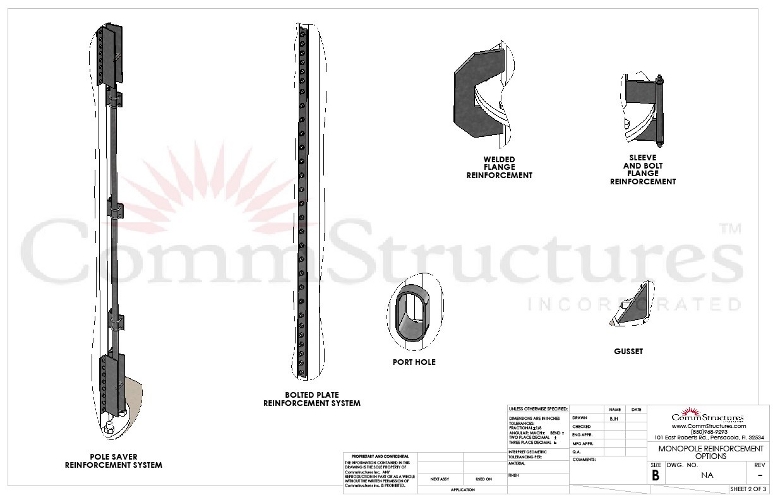

Sample Drawings

Click image to enlarge

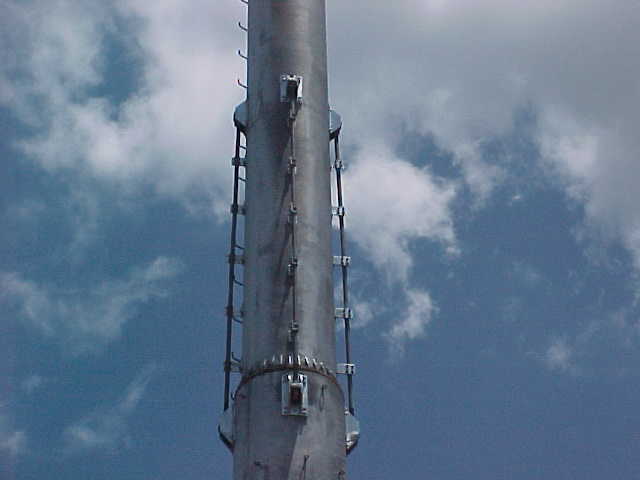

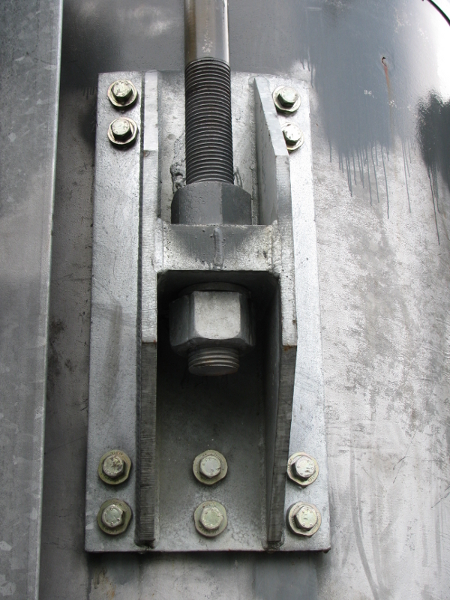

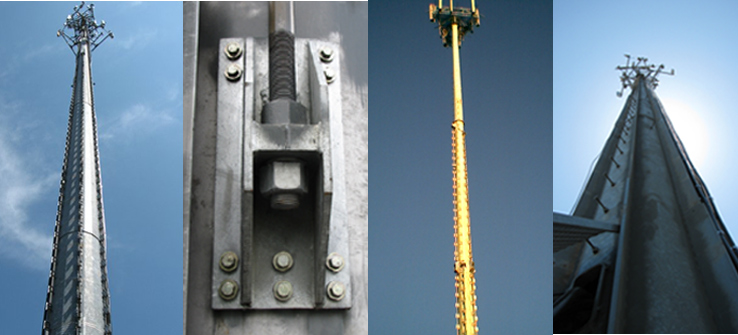

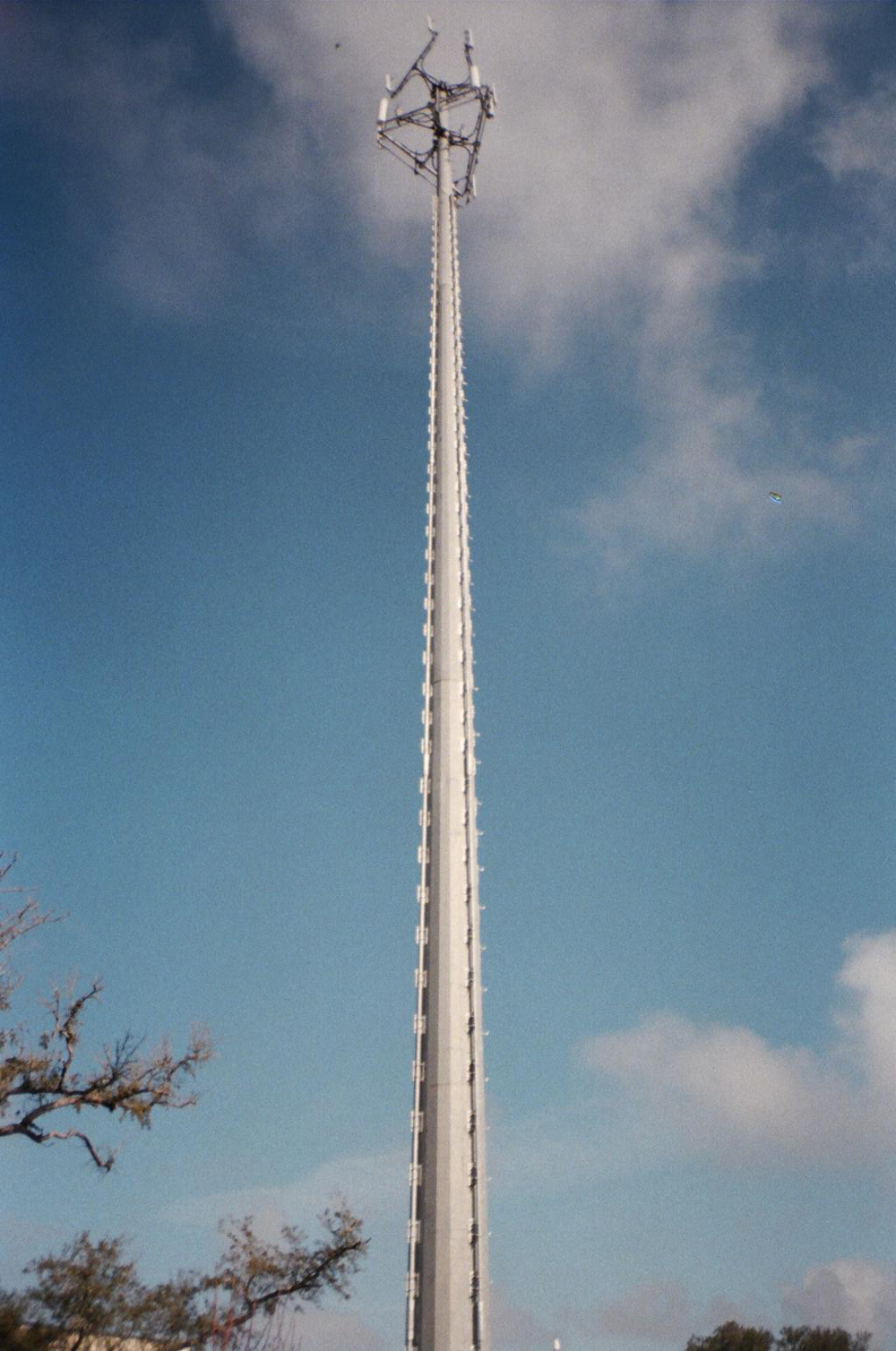

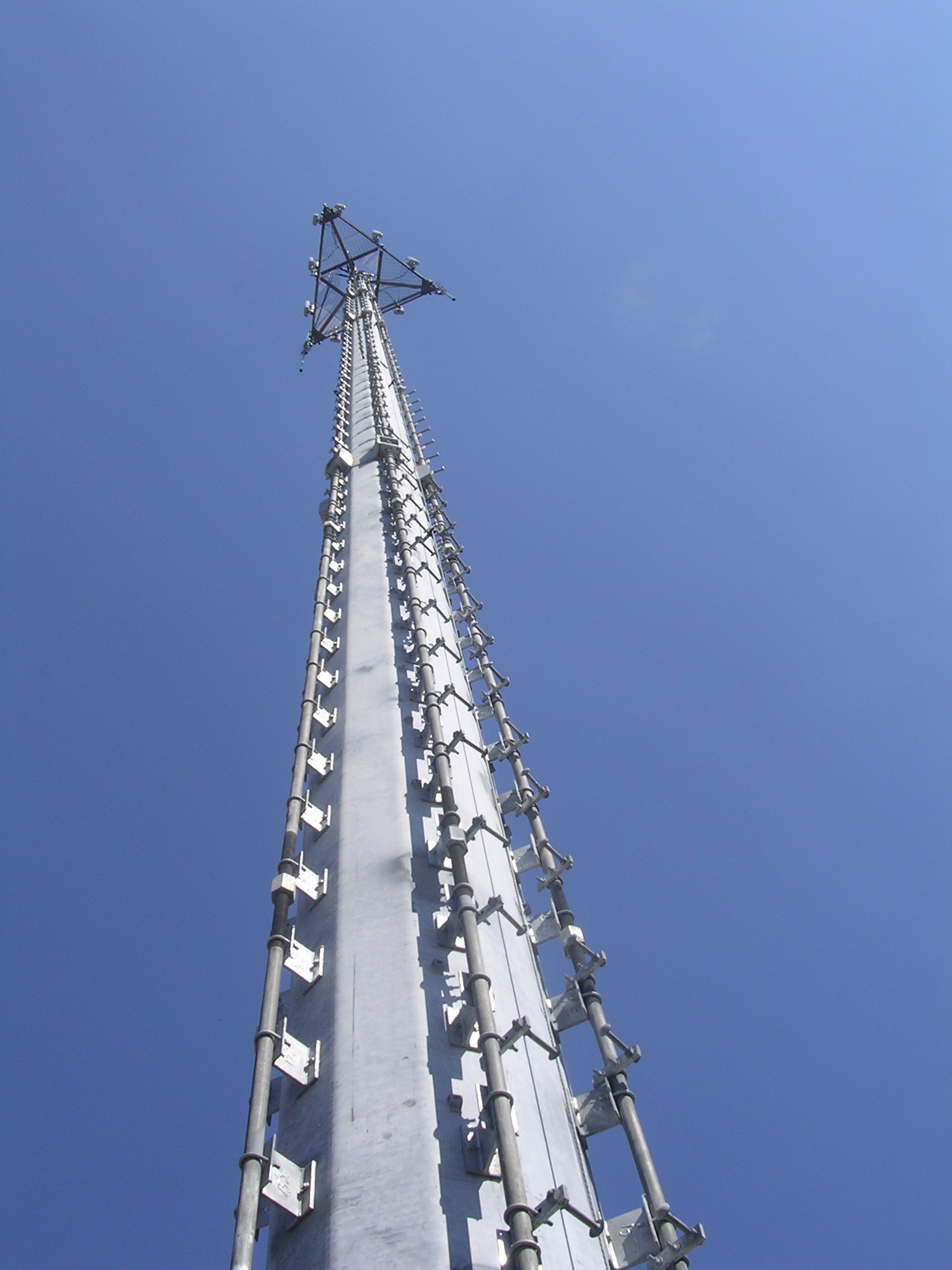

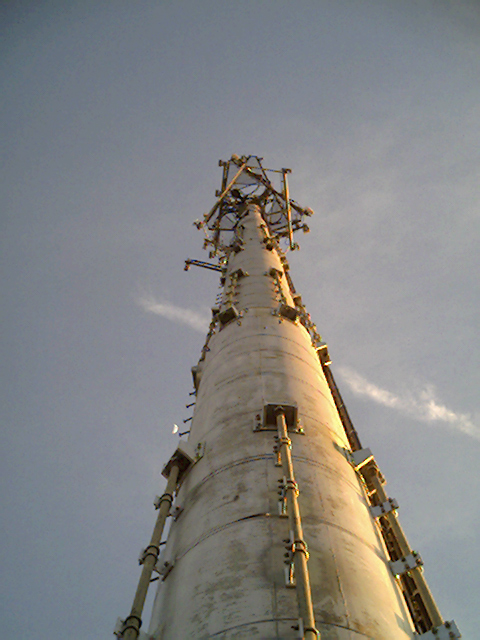

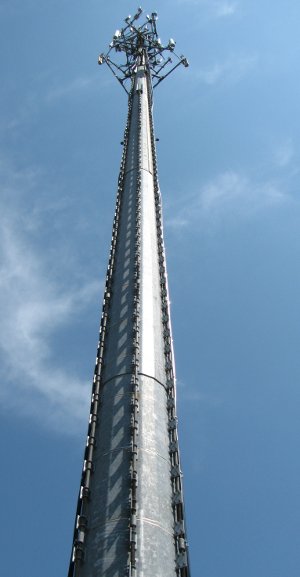

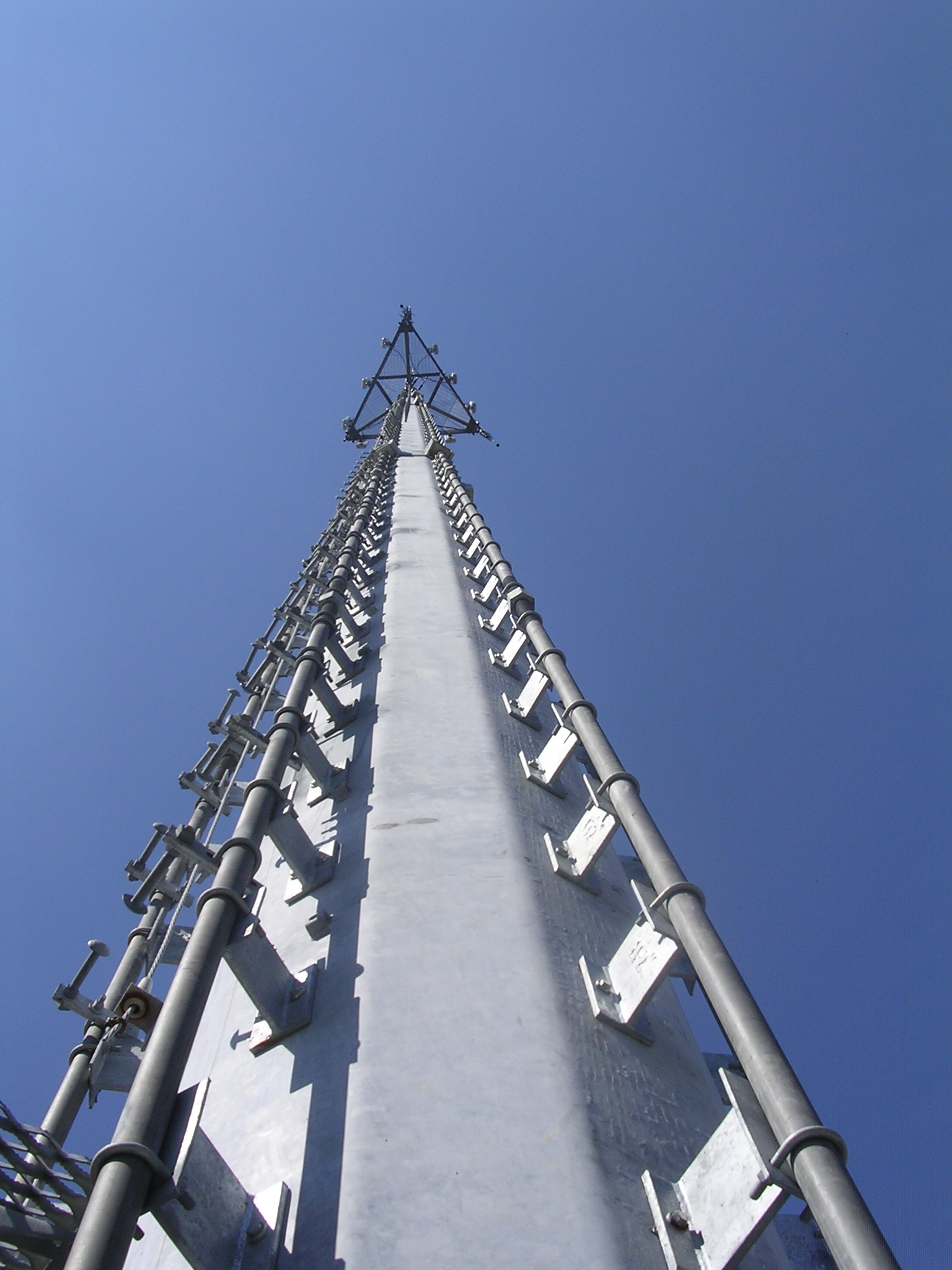

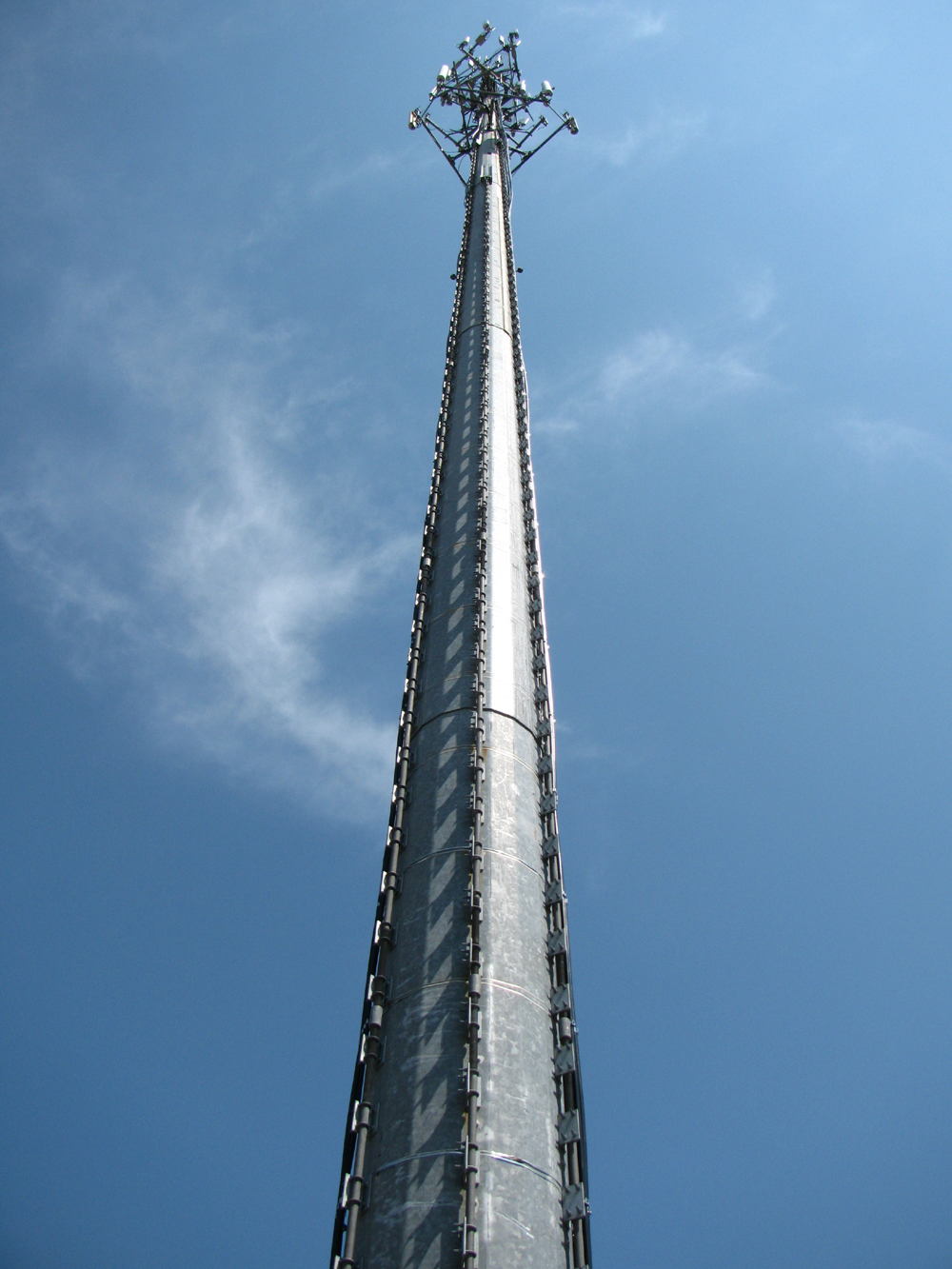

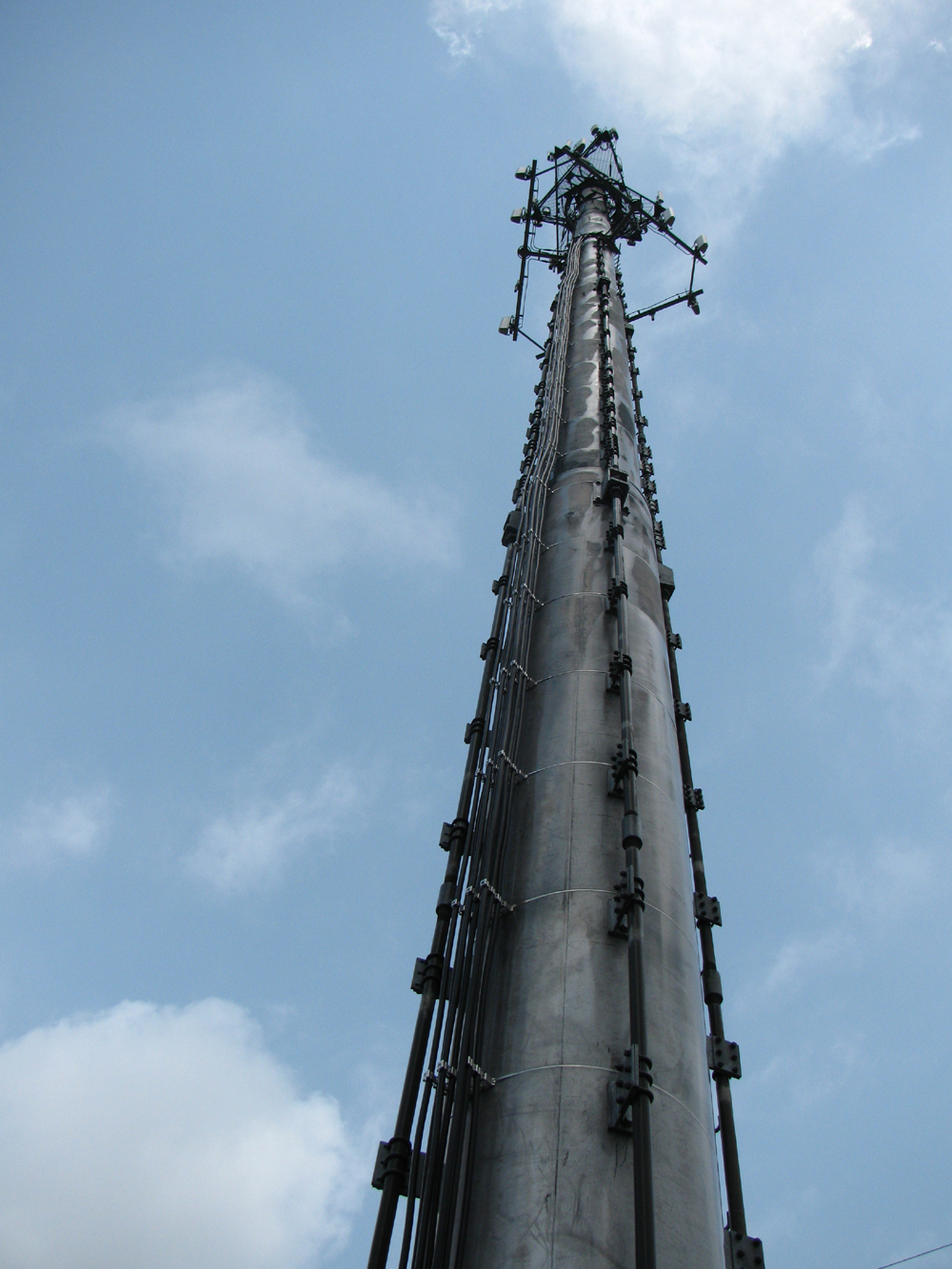

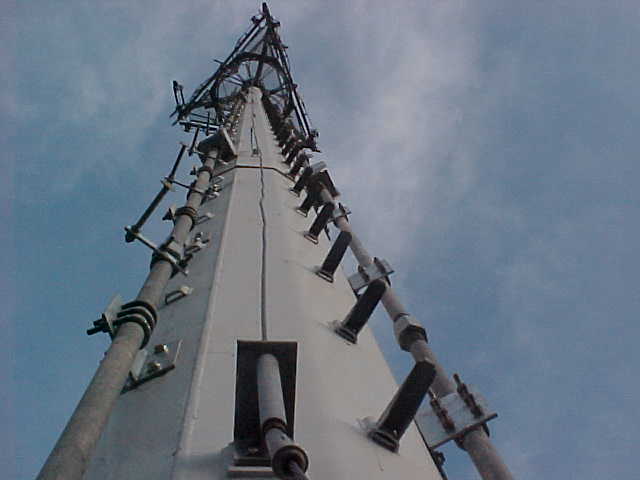

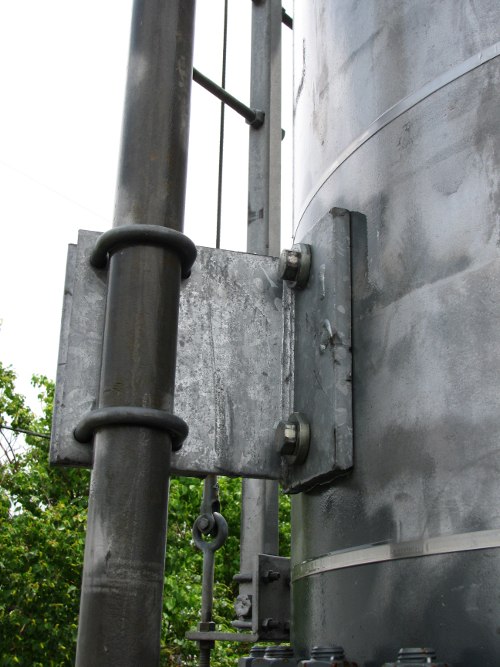

Project Photos

Click image to enlarge
